固件类型：官方提供的固件
固件文件名称：DR9074-2.4G(PN01.1)
固件下载地址：PRODUCTS_Wallys Communications (Suzhou ) Co., LTD
Log日志：无线网卡.zip
QCN9074 802.11ax 4x4 2.4GHz wifi6
QCN9074 11ax 4x4 MU-MIMO 2.4G M.2

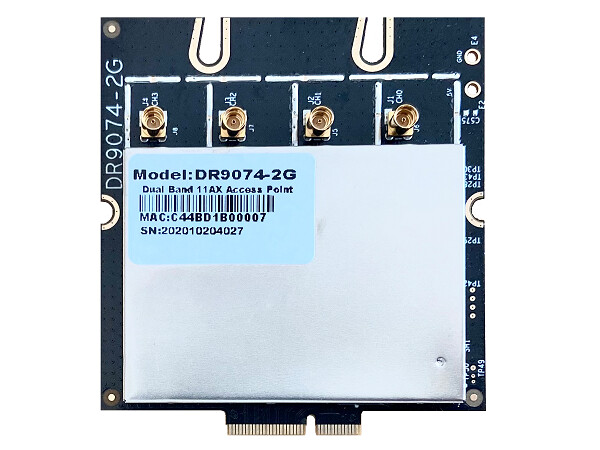

DR9074-2.4G(PN01.1)
Wallys Communications (Suzhou ) Co., LTD (http://www.wallystech.com) is a professional supplier of wireless communication products and has a complete industrial chain in China. Our biggest advantage is our independent research and development ability, which can support you in the later period. We are also a supplier to Facebook, the quality of the product is unquestionable
IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ8072/IPQ8074/QCN9074/QCN9072/QCN9024/IPQ5018/
BY:Wallys Communications (Suzhou ) Co., LTD
EMAIL:sales3@wallystech.com
wifi6 router/network card
wifi 6E
WiFi 6
802.11ax/802.11ac
wireless solutions
Dipole/ panel //Dual Polarization Enclosure /Smart /omni /Antenna
Wireless Access Point/Point to Point /
Features
■ Qualcomm Atheros QCN9074
■ 2.4GHz, max 23dBm per chain, up to 1147Mbps
■ Single Band 2.4GHz 4x4 WiFi 6 (802.11ax
■ 4 spatial streams (4SS)
■ M.2 E Key Interface
■ PCI Express 3.0 Interface
Absolute Maximum Rating
Parameter
Rating
Unit
Operating Temperature Range
-20 to 70
oC
Storage Temperature Range
-40 to 90
oC
Operating Humidity Range
5 to +95 (non-condensing)
%
Storage Humidity Range
0 to +90 (non-condensing)
%
Hardware Specifications
Symbol
Parameter
Chipset
Qualcomm Atheros QCN9074
WLAN Host Interface
PCI Express 3.0 Interface
System Memory
2Mbit serial I2C bus EEPROM
Standard Operating Voltage
5V
Operating Systems
QSDK
Host Interface
M.2 E Key
Antenna Cable / Port
4 x MMCX Connectors,4T4R
Frequency Range
2.412GHz-2.472GHz
Data Rates for WALN
2.4GHz, max 23dBm per chain, up to 4949Mbps
Channel Spectrum Widths for WLAN
Support 20/40MHz at 2.4GHz
Modulation Techniques
OFDMA: BPSK, QPSK, DBPSK, DQPSK,16-QAM, 64-QAM, 256-QAM,1024-QAM
Temperature Range
Operating: -20°C to 70°C, Storage: -40°C to 90°C
Humidity
Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)
Certification
TBD
Power Consumption
TBD
Reference Design
PN01.1
Dimensions (WxHxD)
57mm x 63mm x 6mm
