Features

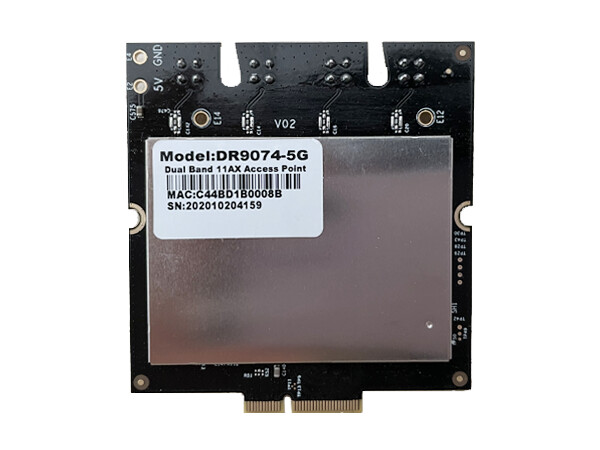

■ Qualcomm Atheros QCN9074
■ 5GHz, max 23dBm per chain, up to 4949Mbps
■ Single Band 5GHz 4x4 WiFi 6 (802.11ax)
■ 4 spatial streams (4SS)
■ M.2 E Key Interface
■ PCI Express 3.0 Interface
■ Supports Dynamic Frequency Selection (DFS)
Absolute Maximum Rating
Parameter
Rating
Unit
Operating Temperature Range
-20 to 70
oC
Storage Temperature Range
-40 to 90
oC
Operating Humidity Range
5 to +95 (non-condensing)
%
Storage Humidity Range
0 to +90 (non-condensing)
%
Hardware Specifications
Symbol
Parameter
Chipset
Qualcomm Atheros QCN9074
WLAN Host Interface
PCI Express 3.0 Interface
System Memory
2Mbit serial I2C bus EEPROM
Standard Operating Voltage
5V
Operating Systems
QSDK
Host Interface
M.2 E Key
Antenna Cable / Port
4 x MMCX Connectors,4T4R
Frequency Range
5.15GHz-5.95GHz
Data Rates for WALN
5GHz, max 23dBm per chain, up to 4949Mbps
Channel Spectrum Widths for WLAN
Support 20/40/80/160MHz at 5GHz
Modulation Techniques
OFDMA: BPSK, QPSK, DBPSK, DQPSK,16-QAM, 64-QAM, 256-QAM,1024-QAM, 4096-QAM
Temperature Range
Operating: -20°C to 70°C, Storage: -40°C to 90°C
Humidity
Operating: 5% to 95% (non-condensing), Storage: Max. 90% (non-condensing)
Certification
TBD
Power Consumption
TBD
Reference Design
PN02.1
Dimensions (WxHxD)
57mm x 63mm x 6mm
