FireFly RK3288 and Dallas DS18b20 Temperature Sensor

Chip Platform Rockchip
1

Hello all,
I try to connect a Dallas Temperature Sensor DS18B20 to my FireFly RK3288 board but I am not able to read the values of temperature as the device is not working !
The W1 OneWire driver is enabled for kernel and also I have enabled the “W1-Master-GPIO” and “W1-SLAVE-Temp” for kernel but I think I need to modify FireFly device tree as well.

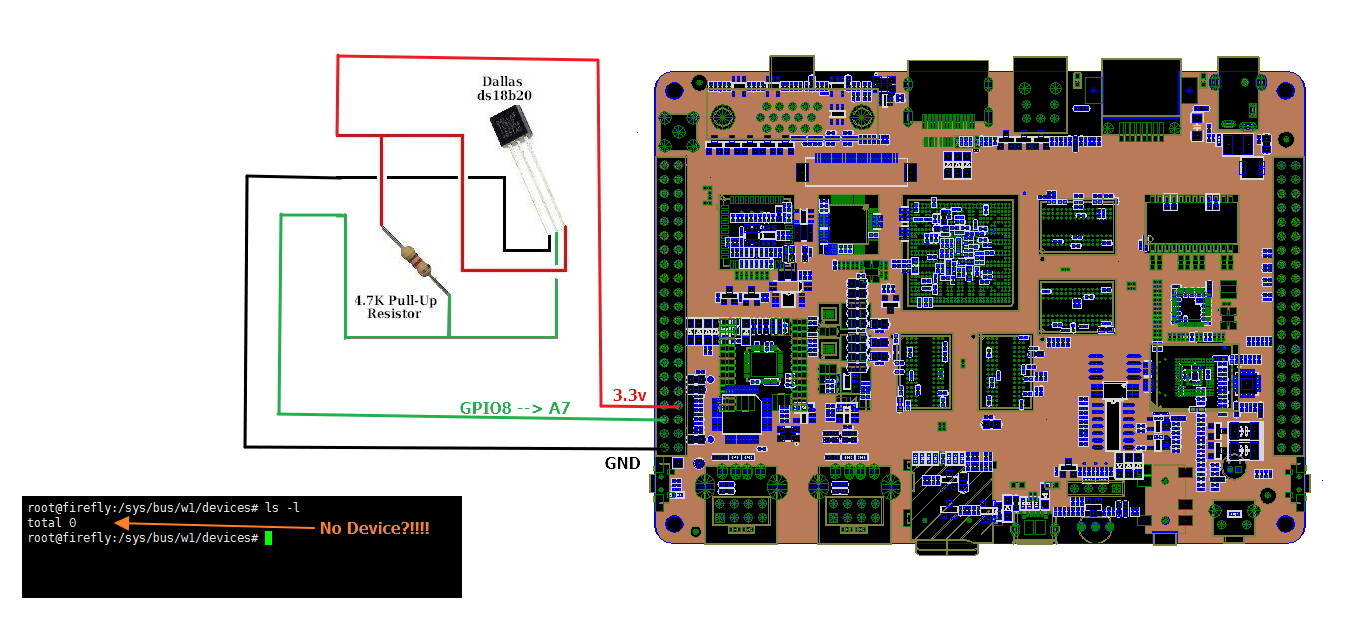

Can anyone please advise and assist me to add to device tree if I use pins shown in attached image to connect my sensor to?

I actually looking for a document showing the GPIO numbering but I couldn’t find any document which clearly explain it. Therfore the FireFly GPIOs numbering are not quite clear for me.
Can anyone help and explain first, how can I fix the above issue and second, how should I use FireFly GPIOs?

Many many Thanks

FireFly GPIO Connection.jpg
FireFly GPIO Connection.jpg1351×640 240 KB

2

Common!!!
No body even have tried that before?
Let’s find it out guys!!!
