Charging the ROC - RK3399 - MEZZ - M2 - POE

Chip Platform Rockchip
1

I dug out my old RC iMax b6 lipo charger to try and charge the battery.
It can balance charge a 2 cell lipo.
On the charger there is a 3 pin balance charging socket which measures and controls the charging.
On the ROC - RK3399 - MEZZ - M2 - POE there is a 3 pin port marked BAT2+ BAT1+ BAT1-.
Do I connect my chargers balance charging socket to the 3 pin port on the POE board?

This is the only document I can find on the battery:
ROC - RK3399 - MEZZ - M2 - POE
3) Onboard battery (dual 7.4V lithium battery)
4) Onboard balanced charging circuit to charge the onboard battery

Thank You

2

Do you want to charge the battery or want to power the board?

3

The 3 pins socket (bat2+,bat1+,bat-) only be connected to the battery,not the charger

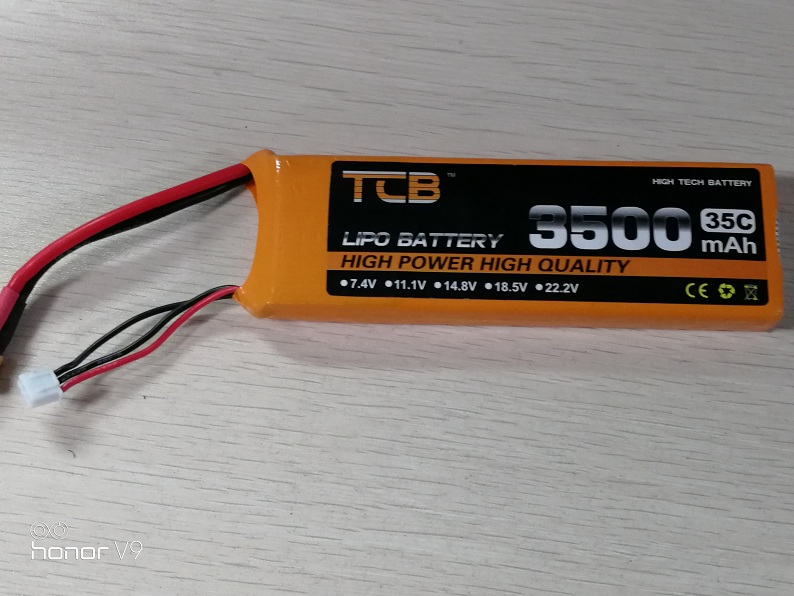

QQ图片20190312092604.jpg794×596 141 KB

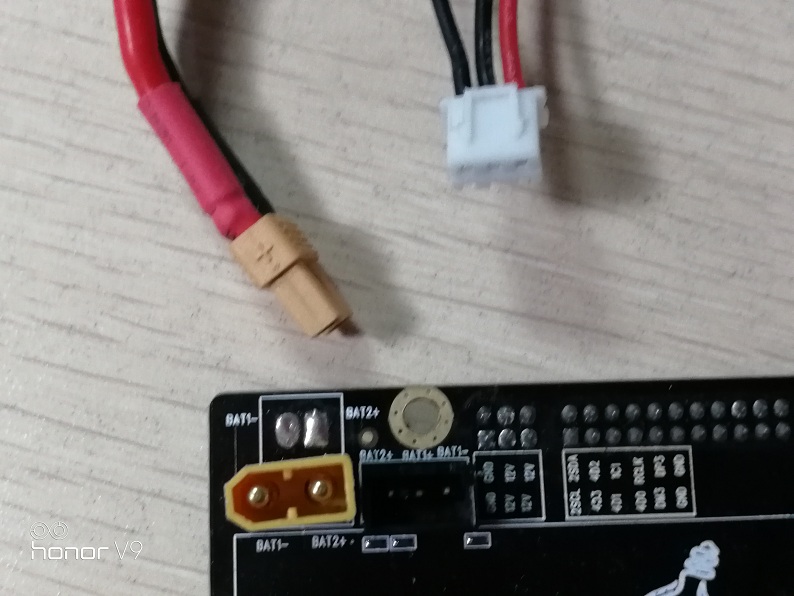

IMG_20190311_180633.jpg794×596 131 KB

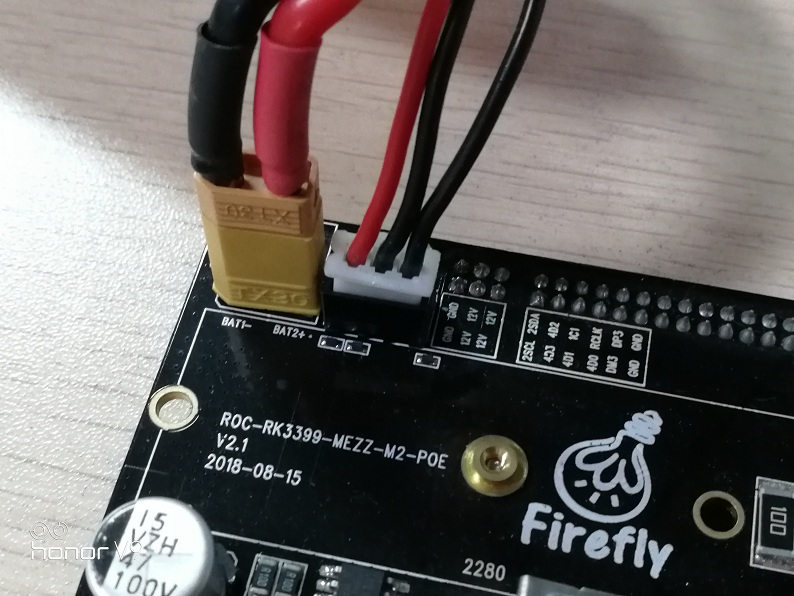

IMG_20190311_180623.jpg794×596 112 KB

4

So as long as it is 7.4v battery it will work? Will C discharge 25c be OK?How long will 2200mah last?

74batt.PNG829×377 104 KB

5

Plz use the recommended battery for better stability. The duration depends on the workload.
