MIPI单通道屏调试过程及问题整理

[gufengdianxia]

本人小菜，写这些过程及问题主要目的就是想请教大神，其次也是想为和我一样的MIPI调屏新手开辟一条更直观的路。
正好官网有DSI的调试教程，马上搞起！:lol

MIPI屏的基本信息为：分辨率为480x854 单通道2 lane屏本身OK，因为可以用单片机板子点亮OK

按MIPI DSI的调试步骤来设置：

1.配置/kernel/arch/arm/configs/firefly-rk3288_defconfig

2./kernel/arch/arm/boot/dts/下新增配置文件
lcd-swi045-mipi.dtsi
部分代码贴上（完整的在附件中）

/*
* arch/arm/boot/dts/lcd-swi045-mipi.dtsi
 * author:
 * create date: 2015-02-04
 * lcd model: SWI4.5''
 * resolution: 480x854
 * mipi channel: single
 */

/ {
        /* about mipi */
        disp_mipi_init: mipi_dsi_init{
                    compatible = "rockchip,mipi_dsi_init";
                    rockchip,screen_init    = <1>;
                    rockchip,dsi_lane       = <2>;
                    rockchip,dsi_hs_clk     = <1000>;
                    rockchip,mipi_dsi_num   = <1>;
        };
        disp_mipi_power_ctr: mipi_power_ctr {
                    compatible = "rockchip,mipi_power_ctr";
                    mipi_lcd_rst:mipi_lcd_rst{
                            compatible = "rockchip,lcd_rst";
                            rockchip,gpios = <&gpio0 GPIO_B5 GPIO_ACTIVE_LOW>;
                            rockchip,delay = <100>;
                    };
        };
            disp_mipi_init_cmds: screen-on-cmds {
                                        rockchip,cmd_debug = <0>;
                                        compatible = "rockchip,screen-on-cmds";
                                        rockchip,on-cmds1 {
                                                        compatible = "rockchip,on-cmds";
                                                        rockchip,cmd_type = <LPDT>;
                                                        rockchip,dsi_id = <0>;
                                                        rockchip,cmd = <0x00 0x00>;
                                                        rockchip,cmd_delay = <0>;
                                        };

                                        rockchip,on-cmds2 {
                                                        compatible = "rockchip,on-cmds";
                                                        rockchip,cmd_type = <LPDT>;
                                                        rockchip,dsi_id = <0>;
                                                        rockchip,cmd = <0xff 0x80 0x09 0x01>;
                                                        rockchip,cmd_delay = <0>;
                                        };
                                        rockchip,on-cmds3 {
                                                        compatible = "rockchip,on-cmds";
                                                        rockchip,cmd_type = <LPDT>;
                                                        rockchip,dsi_id = <0>;
                                                        rockchip,cmd = <0x00 0x80>;
                                                        rockchip,cmd_delay = <0>;
                                        };
                                        rockchip,on-cmds4 {
                                                        compatible = "rockchip,on-cmds";
                                                        rockchip,cmd_type = <LPDT>;
                                                        rockchip,dsi_id = <0>;
                                                        rockchip,cmd = <0xff 0x80 0x09>;
                                                        rockchip,cmd_delay = <0>;
                                        };
                                        rockchip,on-cmds5 {
                                                        compatible = "rockchip,on-cmds";
                                                        rockchip,cmd_type = <LPDT>;
                                                        rockchip,dsi_id = <0>;
                                                        rockchip,cmd = <0x00 0x80>;
                                                        rockchip,cmd_delay = <0>;
                                        };
                                   //有100多行Initial code   省略没贴
        };

        disp_timings: display-timings {
                        native-mode = <&timing0>;
                        compatible = "rockchip,display-timings";
                        timing0: timing0 {
                screen-type = <SCREEN_MIPI>;
                lvds-format = <LVDS_8BIT_2>;
                out-face    = <OUT_P888>;
                clock-frequency = <30000000>;
                hactive = <800>;
                vactive = <480>;
                hback-porch = <40>;
                hfront-porch = <50>;
                vback-porch = <10>;
                vfront-porch = <4>;
                hsync-len = <8>;
                vsync-len = <7>;
                hsync-active = <0>;
                vsync-active = <0>;
                de-active = <0>;
                pixelclk-active = <0>;
                swap-rb = <0>;
                swap-rg = <0>;
                swap-gb = <0>;
                        };
               };
};

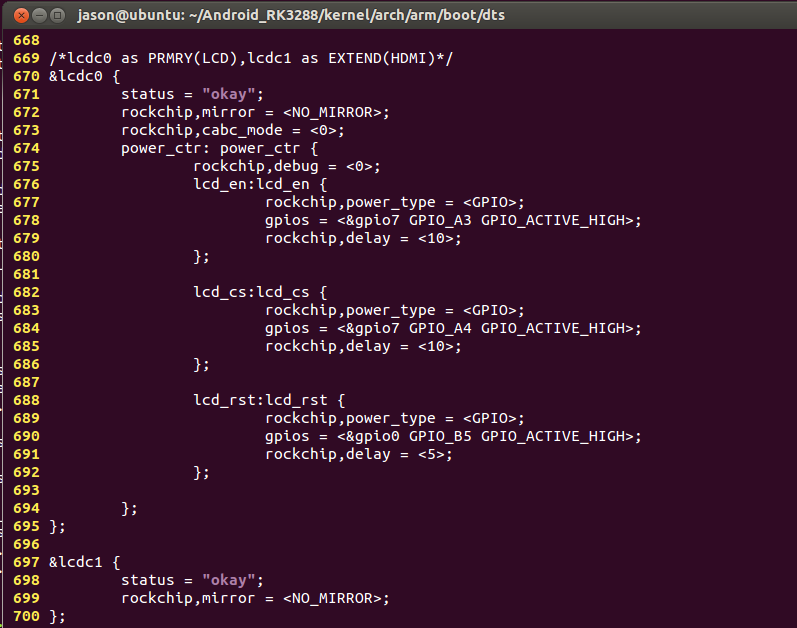

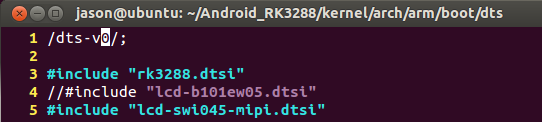

3./kernel/arch/arm/boot/dts/firefly-rk3288.dts下添加DST文件

修改lcd_rst的GPIO配置

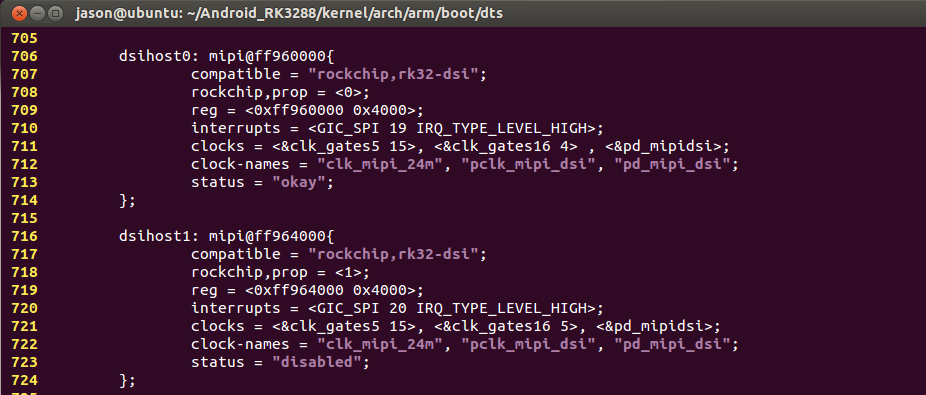

4.由于是单通道，/kernel/arch/arm/boot/dts/rk3288.dtsi中配置dsihost0

5.连线（）

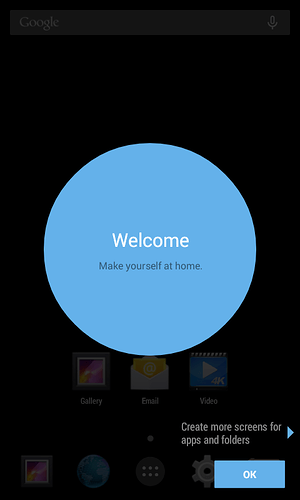

编译烧录后发现屏无任何反应，应该是初始化都没有成功{:3_47:}
呼唤zhangsb大神，代码上是否哪里存在问题？{:3_59:}

Code.rar (2.59 KB)

[zhansb]

cmd的第一个字节DSI数据类型没有写上去，还有没看到背光的配置

[_Sai]

总结是个好习惯

[gufengdianxia]

背光我暂时没有配置，因为背光我是外供的，所以不会出现无背光的情况。
另外DSI数据类型是什么？我只有LCM的Initial，如何与DSI数据类型对应起来？

[gufengdianxia]

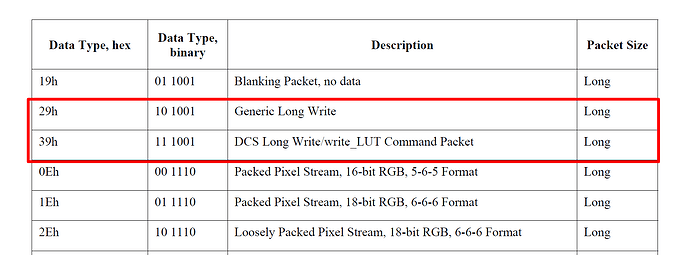

zhangsb大神，我有看到Data Type主要分为Generic xx write和DCS xx write。

以0x29和0x39为例，这两种Data Type在是使用的时候有什么区别么？
