3. RTSP/RTMP Stream Pulling and Relaying — The FFMedia Getting Started Series

[neutionwei]

This section uses FFMedia SDK 2.6.1 as an example, and with the prebuilt ffmedia CLI builds a complete pipeline of upstream stream source → network stream pulling → encoded bitstream pass-through (or transcoding) → RTSP/RTMP serving.

This section focuses on direct relaying of the encoded bitstream: no decoding, no re-encoding, so both latency and CPU usage stay low. Only when the upstream codec is incompatible with the target output protocol do you need to add an mpp-dec + mpp-enc transcoding chain.

Preparing the Environment

Hardware Environment

Prepare the following hardware:

• Firefly RK platform (for example, ROC-RK3588-RT running Firefly Ubuntu 22.04)
• A PC on the same LAN as the board, used to provide the upstream stream source and verify the relaying result
• (Optional) An IPC network camera, used to provide an upstream source with a real bitstream

The upstream and downstream must be able to reach each other’s ports. Across subnets or behind firewalls, allow 8554/tcp, 8554/udp, and 1935/tcp.

Software Environment

Extract the SDK release package on the target board and confirm the CLI works:

tar -xzvf ffmedia_release-2.6.1.tar.gz
cd ffmedia_release-2.6.1

./bin/ffmedia modules

Check the parameter definitions of the network modules; parameter names and enum names vary with the SDK version:

./bin/ffmedia params rtsp-client
./bin/ffmedia params rtsp-server
./bin/ffmedia params rtmp-client
./bin/ffmedia params rtmp-server
./bin/ffmedia params mpp-enc

Modules used in this section’s pipeline:

Module	Category	Purpose
rtsp-client	Input (vi)	Pull an RTSP stream; outputs compressed video and usable audio channels
rtmp-client	Input (vi)	Pull an RTMP stream with publish=true
ffmpeg-demux	Input (vi)	Read media via FFmpeg protocols and demuxers (HLS, WHEP, SRT, etc.)
mpp-dec	Process (vp)	Decode the bitstream into raw frames with Rockchip MPP (only needed for transcoding)
mpp-enc	Process (vp)	Re-encode raw frames with Rockchip MPP (only needed for transcoding)
rtsp-server	Output (vo)	Receive encoded media packets and distribute them to clients as an RTSP server
rtmp-server	Output (vo)	Receive encoded media packets and distribute them to clients as an RTMP server

Preparing the Upstream Stream Source

Upstream sources in the demo environment:

Option	Description
MediaMTX + ffmpeg synthetic stream	Zero-config setup on the PC; provides both RTSP and RTMP upstreams, covering every pipeline in this section
IPC network camera	A real bitstream, but usually RTSP only; the RTMP pulling pipeline still needs MediaMTX

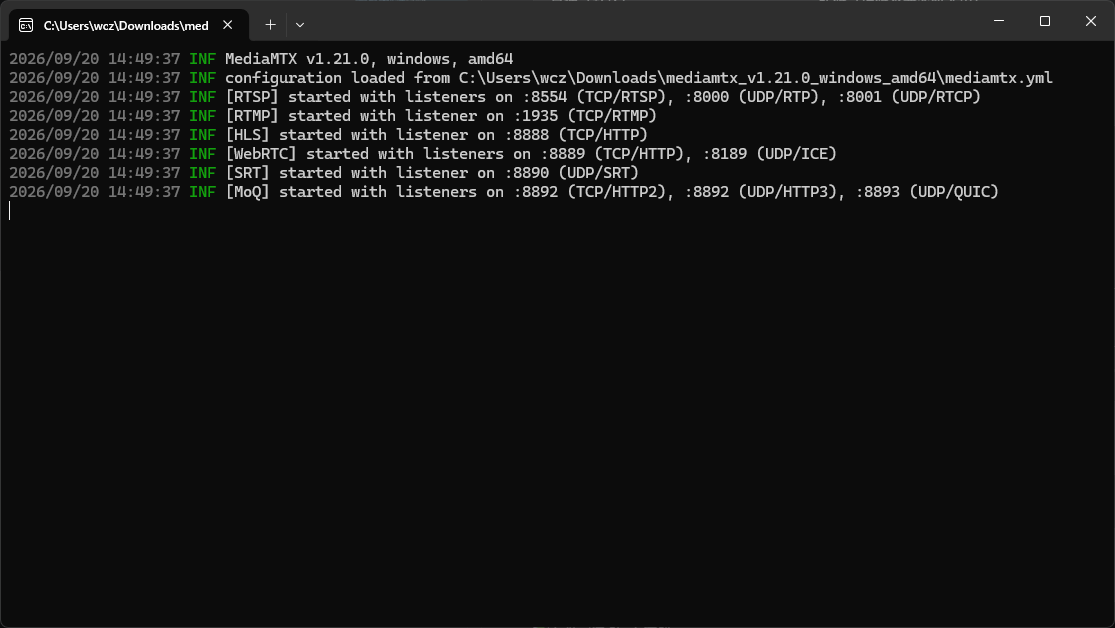

Start MediaMTX on the PC (a single file, no installation; listens on RTSP 8554 / RTMP 1935 by default):

mediamtx.exe

The default configuration already listens on 8554 (RTSP) and 1935 (RTMP), and also serves 8888 (HLS), 8889 (WebRTC), and more:

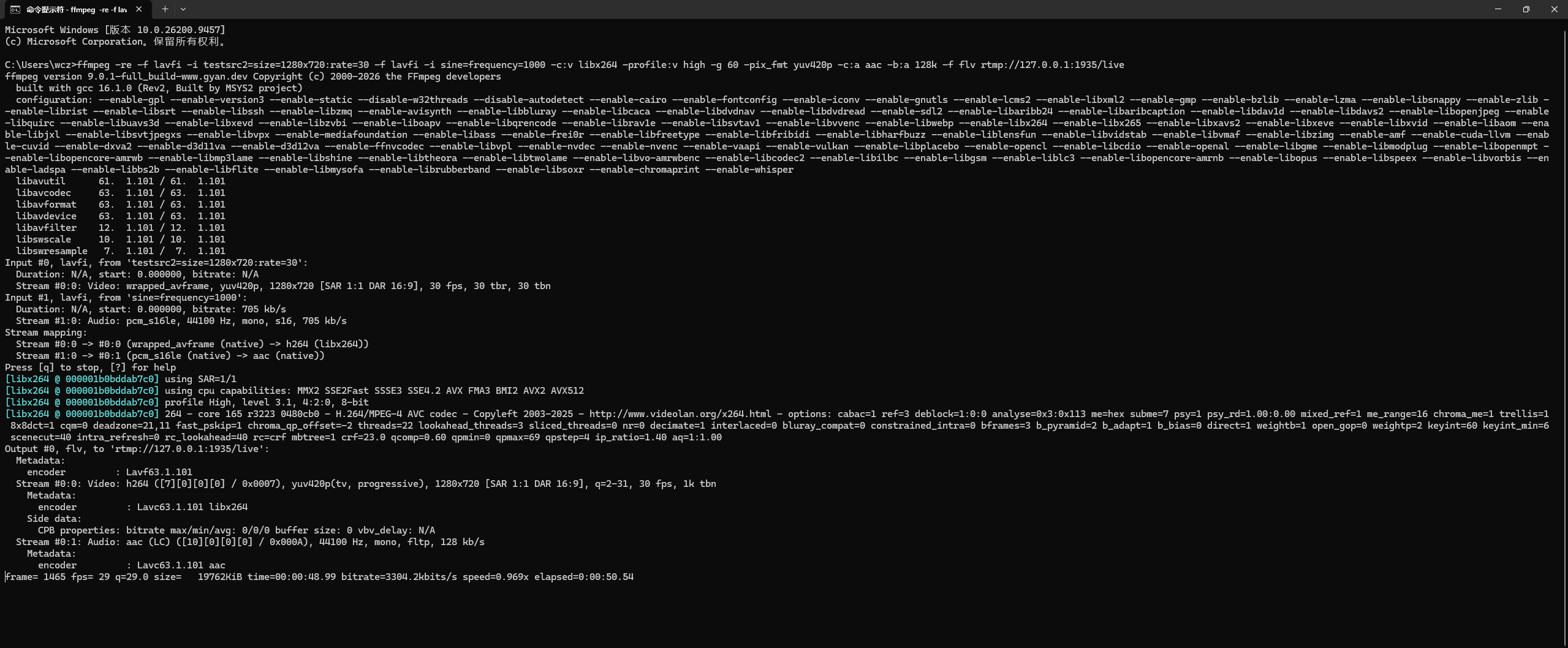

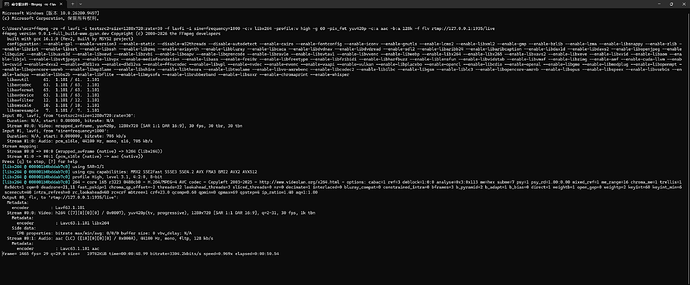

Then push in two test streams. The first is H.264 + AAC, for the pass-through pipeline:

ffmpeg -re -f lavfi -i testsrc2=size=1280x720:rate=30 \
  -f lavfi -i sine=frequency=1000 \
  -c:v libx264 -profile:v high -g 60 -pix_fmt yuv420p \
  -c:a aac -b:a 128k \
  -f flv rtmp://127.0.0.1:1935/live

The topology:

                                 +-> rtsp-server :8554/live
ffmpeg ---> MediaMTX ------------+-> rtmp-server :1935/live
  rtmp://<PC_IP>:1935/live       +-> hls-server :8888/live/index.m3u8
                                 +-> ...

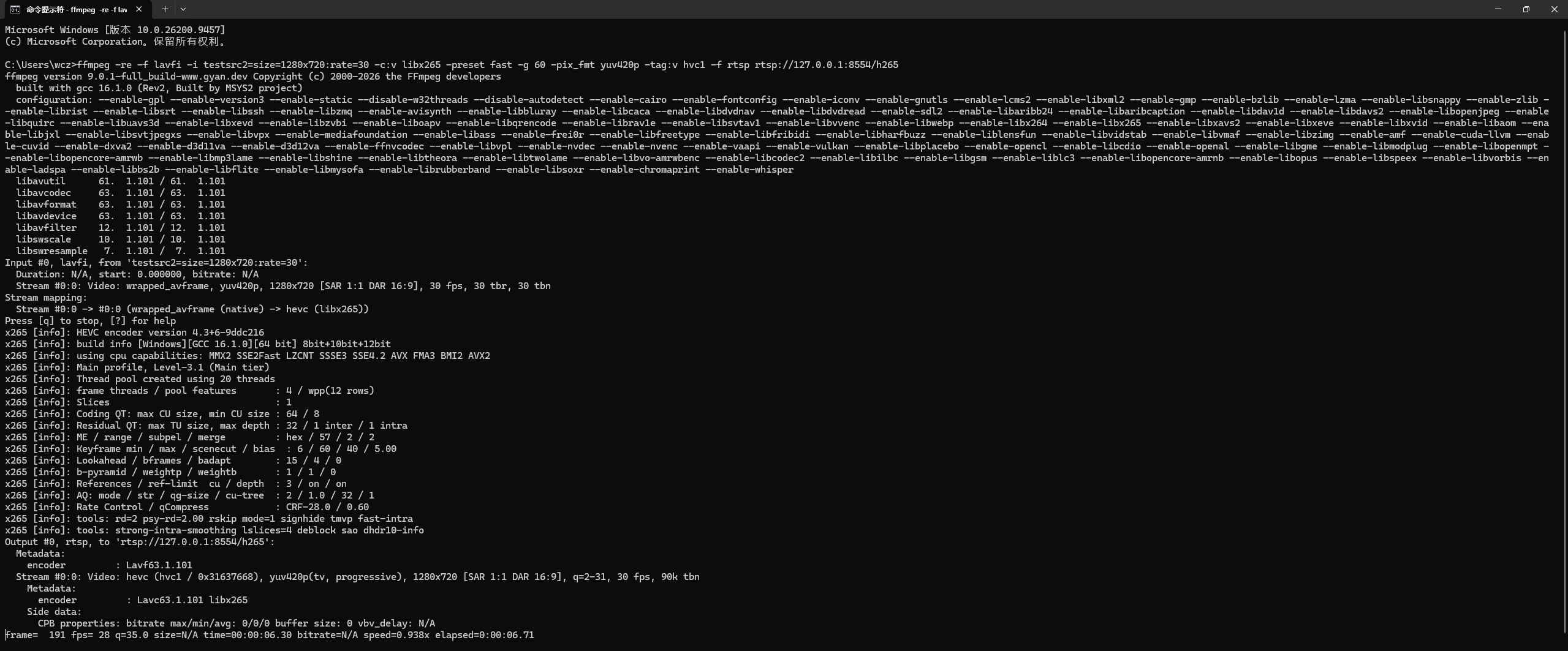

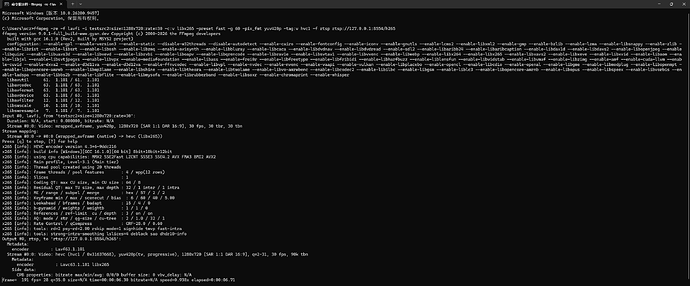

The second is H.265, for the transcoding pipeline later:

ffmpeg -re -f lavfi -i testsrc2=size=1280x720:rate=30 \
  -c:v libx265 -preset fast -g 60 -pix_fmt yuv420p -tag:v hvc1 \
  -f rtsp rtsp://127.0.0.1:8554/h265

Once the streams are pushed, the PC provides the following upstream addresses (<PC_IP> is the PC’s LAN address):

Upstream Address	Codec	Used For
rtsp://<PC_IP>:8554/live	H.264 + AAC	RTSP pulling, branch pipeline
rtmp://<PC_IP>:1935/live	H.264 + AAC	RTMP pulling
rtsp://<PC_IP>:8554/h265	H.265	Transcoding pipeline

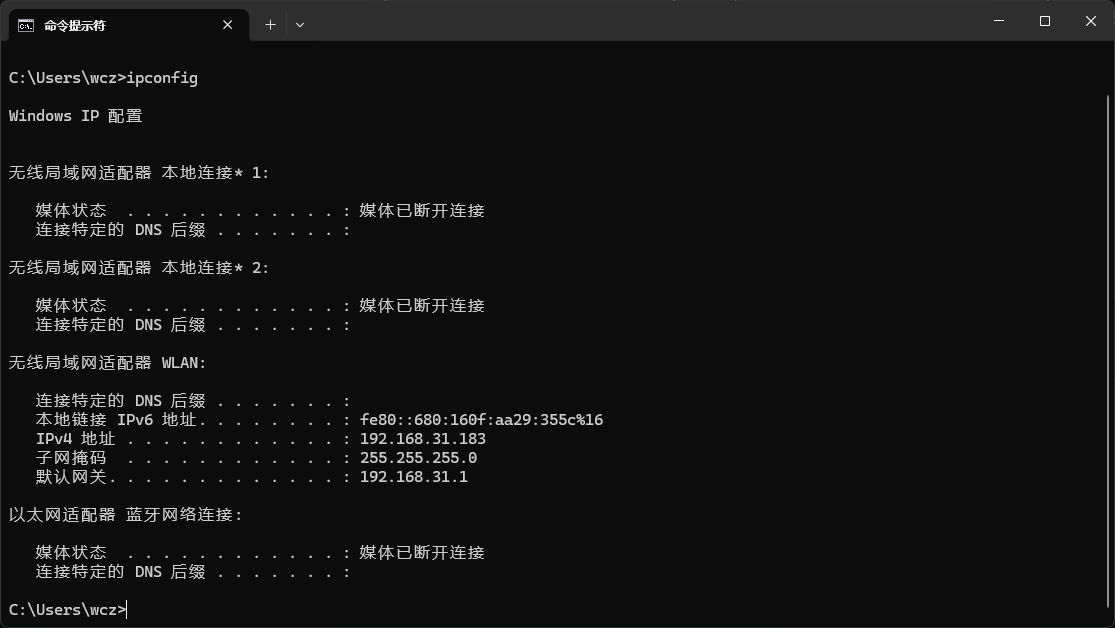

On Windows, use ipconfig to find <PC_IP>; here it is 192.168.31.183 for example:

If you use an IPC camera instead, first set the video encoding to H.264 in its web admin panel, then assemble the RTSP URL in the vendor’s format.

Addresses and Ports

Name	Example	Description
Upstream RTSP address	rtsp://192.168.1.100:8554/live	Source address pulled by the target board
Upstream RTMP address	rtmp://192.168.1.100:1935/live	Source address pulled by the target board
Relaying device address	172.16.18.63	The target board’s address on the LAN
RTSP service port	8554	Avoid 554, which requires elevated privileges
RTMP service port	1935	The default RTMP port
Service path	/live	The server’s default path

---

How It Works

What the network modules send and receive is the encoded bitstream, with no pixel data involved. So the shortest “pull → relay” chain has no decoding or encoding stage:

Pass-through (default)              Transcoding (only when codecs are incompatible)
----------------------------------  -----------------------------------------------
client -> server                    client -> mpp-dec -> mpp-enc -> server
no decode, no re-encode             decode to frames, re-encode with the target codec
low latency, low CPU usage          higher latency, occupies the MPP hardware unit
input codec preserved as-is         can convert H.265 to H.264 to fit RTMP

There is only one decision criterion — the upstream video codec:

Upstream Codec	RTSP Output	RTMP Output
H.264	Pass-through works	Pass-through works
H.265	Pass-through works (RTSP has broader compatibility)	Transcoding required; RTMP clients usually do not support H.265

---

Verifying the Upstream Works

Start with the simplest verification — the board is not involved — to confirm the upstream source itself works. This step separates “source problems” from “board problems” up front:

ffprobe rtsp://<PC_IP>:8554/live
ffplay  rtsp://<PC_IP>:8554/live

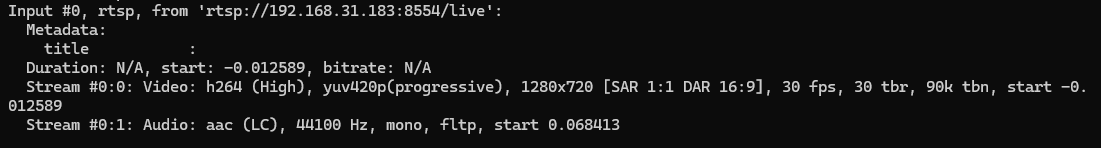

In the ffprobe output, focus on the streams’ codec identifiers:

Stream #0:0: Video: h264 ...
Stream #0:1: Audio: aac ...

For example:

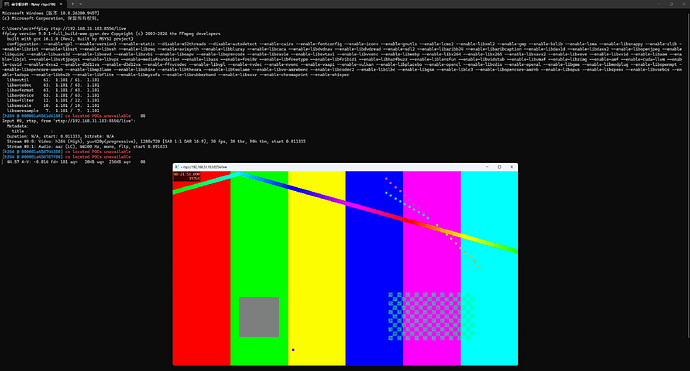

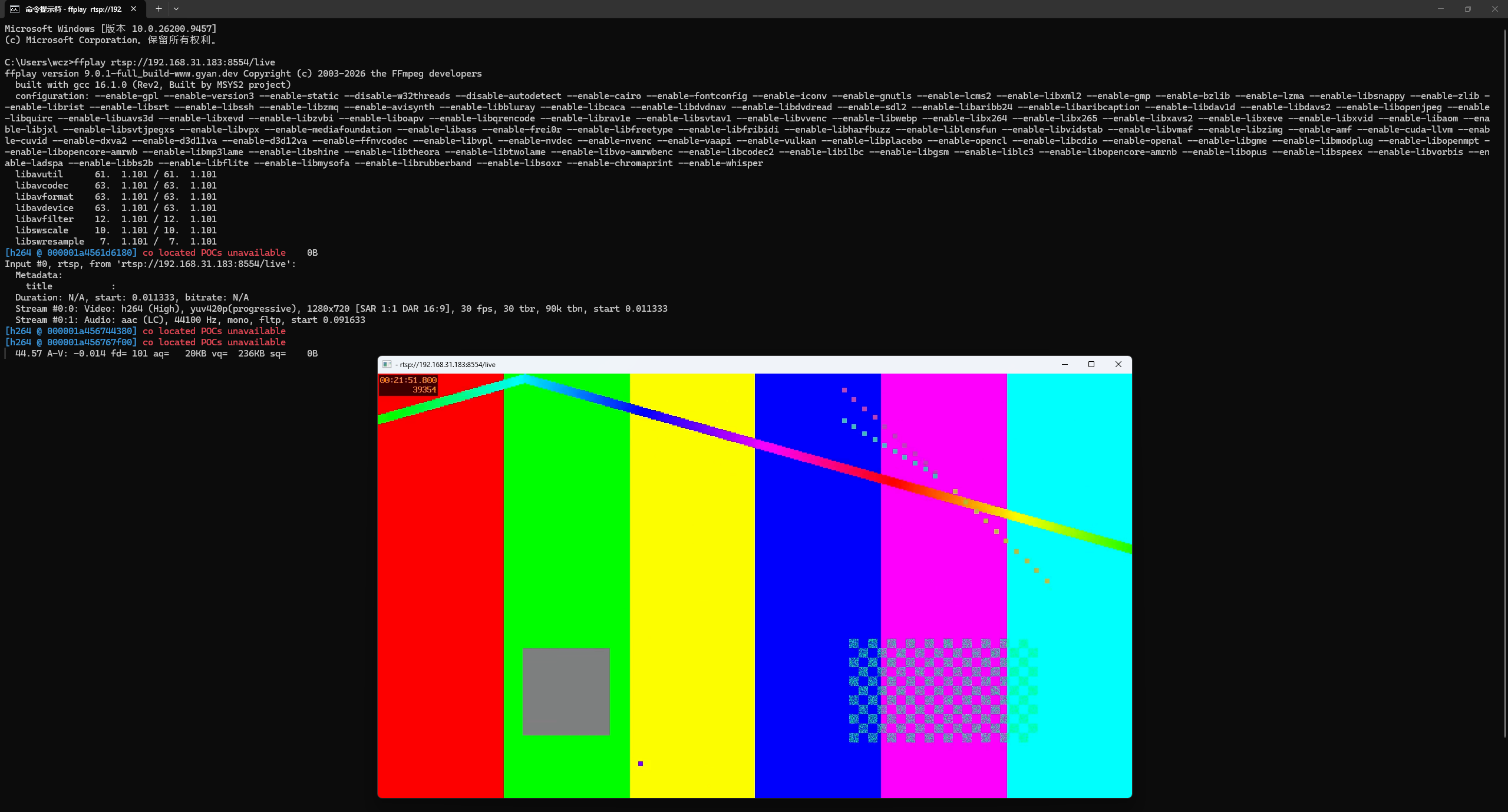

The upstream stream playing on the PC:

If you see hevc / h265, use the transcoding pipeline in this document when relaying to RTMP later.

---

Pulling the Stream and Serving It as RTSP

Start with the simplest relaying pipeline — pull the stream and serve it as RTSP as-is.

Pipeline Structure

Pass-through pipeline:

rtsp-client -> rtsp-server

Full Command

./bin/ffmedia run \
  -m src=rtsp-client \
  -m relay=rtsp-server \
  -p 'src:source{url=rtsp://<PC_IP>:8554/live}' \
  -p 'relay:endpoint/port=8554' \
  -c src=relay

Command Breakdown

Part	Meaning
-m src=rtsp-client	Declare the stream-pulling module instance src
-p 'src:source{url=...}'	Specify the upstream RTSP address; sub-parameters are separated by ;
-m relay=rtsp-server	Declare the RTSP server module instance relay
-p 'relay:endpoint/port=8554'	Set the service port to 8554 (endpoint/port is a sub-parameter path)
-c src=relay	Connect src → relay; omitting the channel number automatically matches compatible video/audio channels

Verification

Other machines pull the stream relayed by the board via:

ffplay rtsp://<BOARD_IP>:8554/live

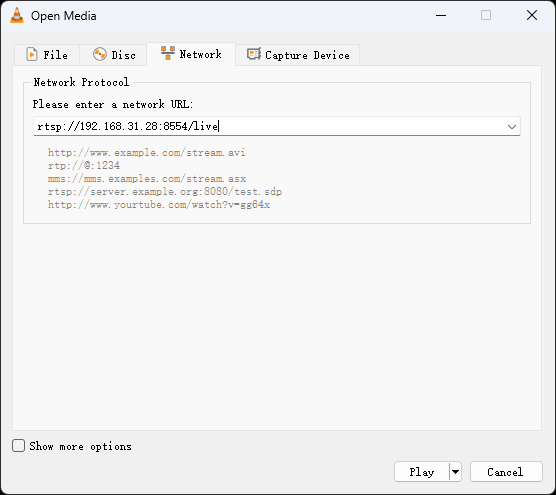

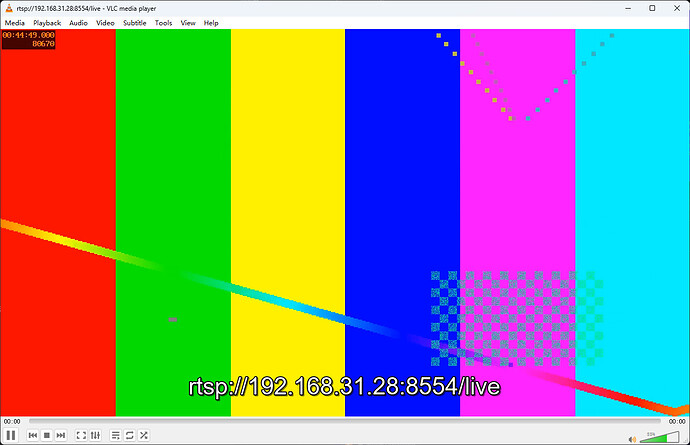

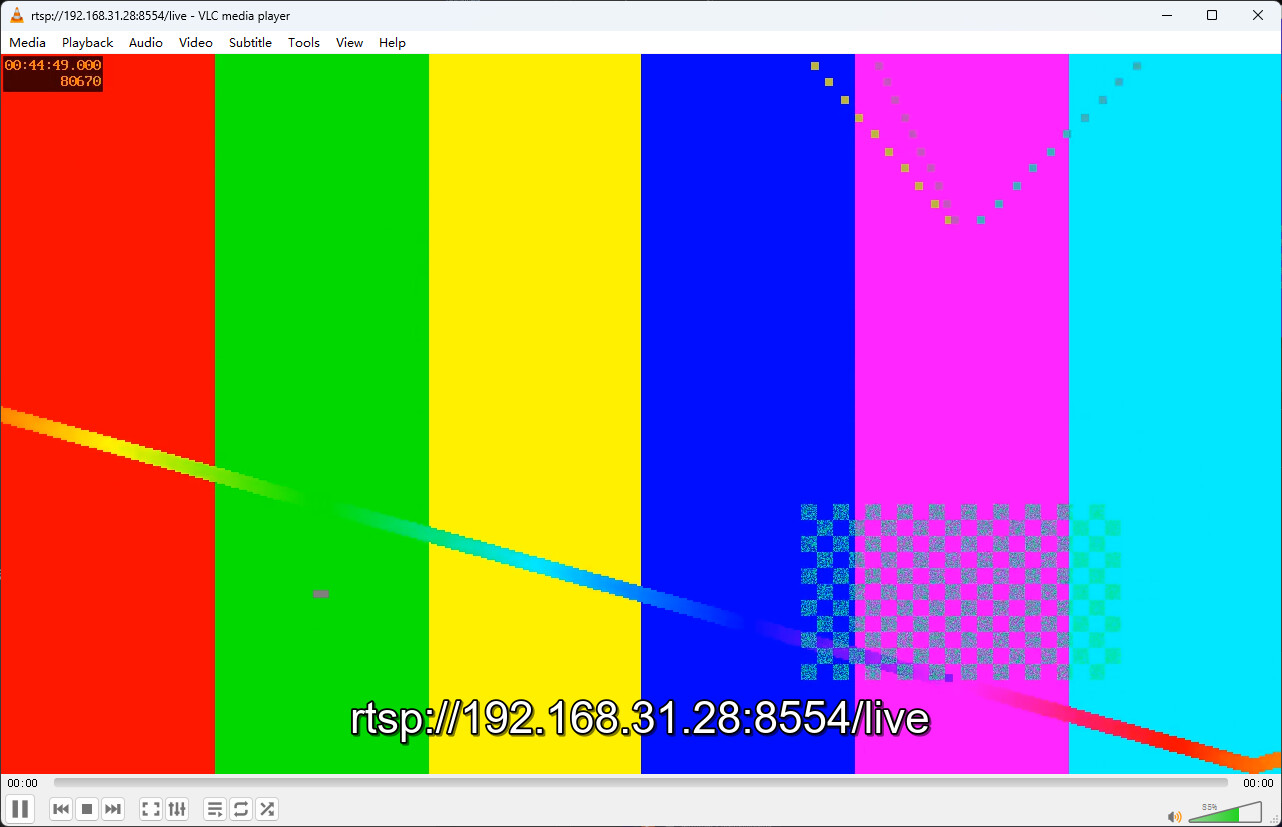

Or use the VLC client to pull the RTSP stream provided by the board:

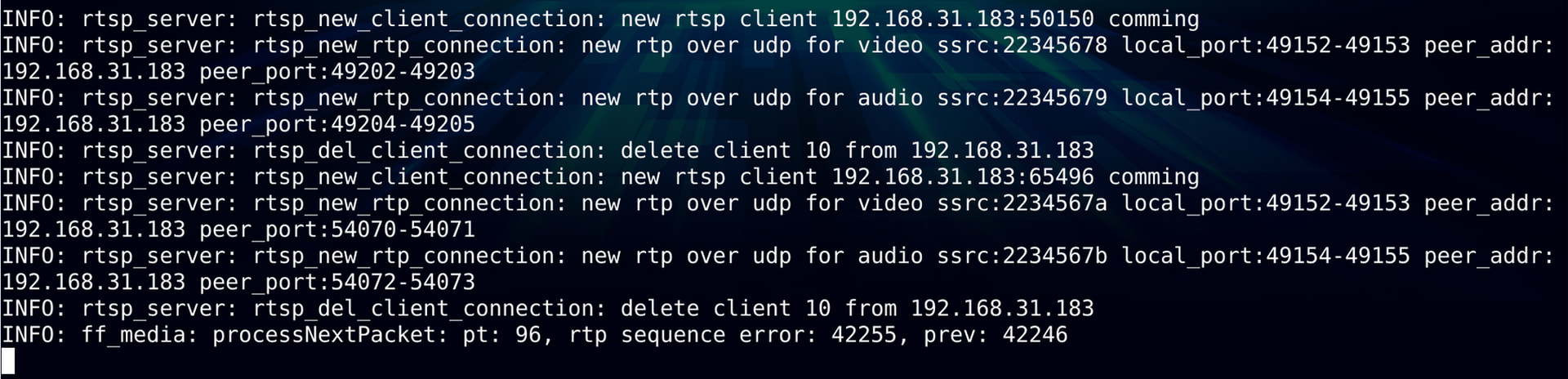

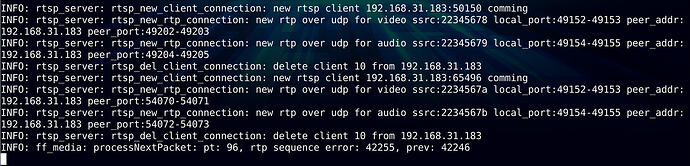

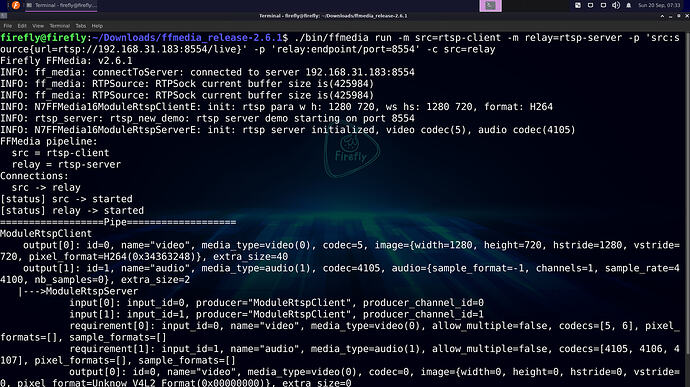

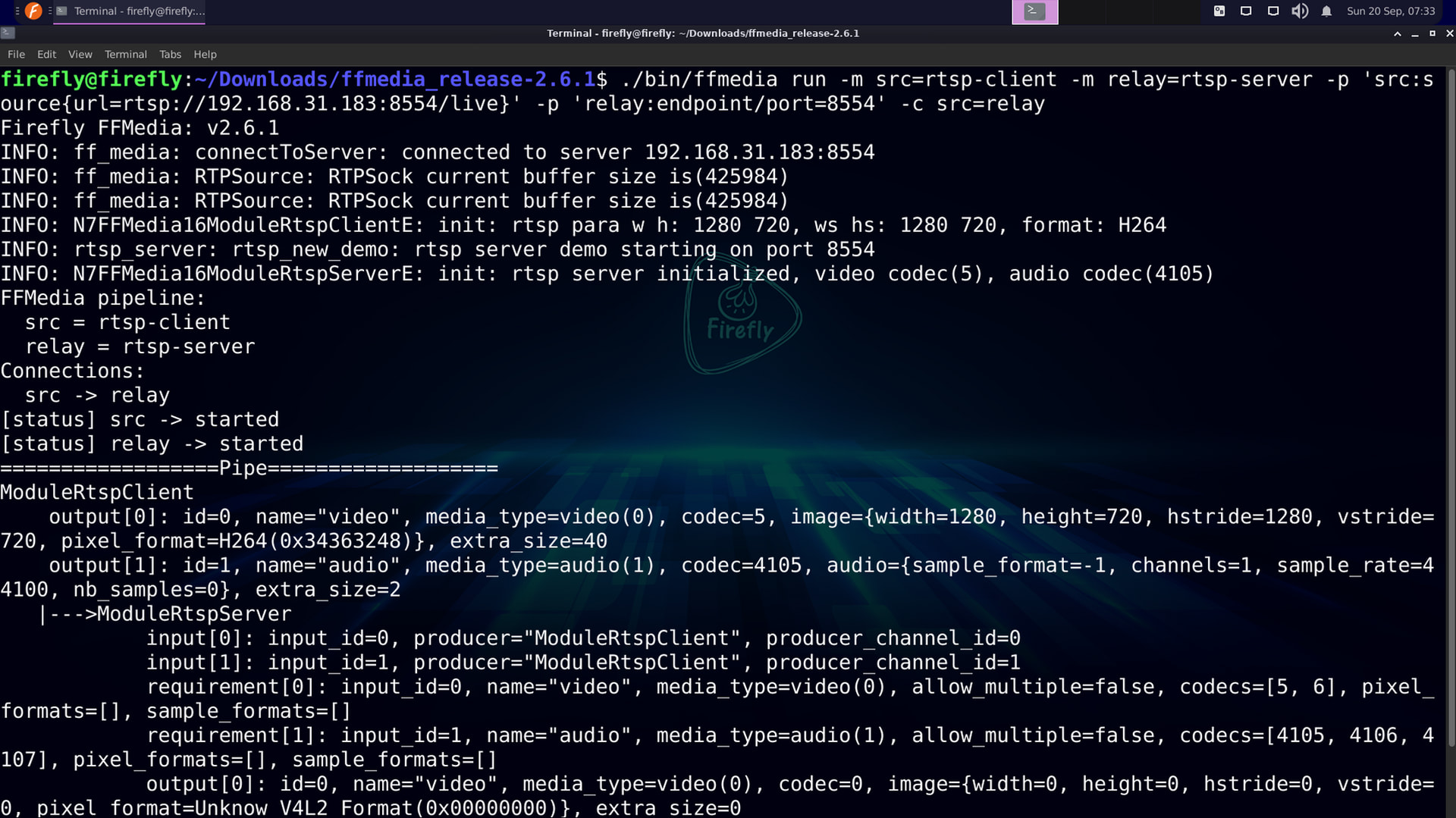

What FFMedia prints:

This chain contains no decoding module; it is compressed-bitstream pass-through. If you only need video, connect the video channel explicitly: -c src@0=relay.

Using TCP Transport for the Upstream

The RTSP client uses UDP by default. Across subnets or behind firewalls, if UDP does not work, first check the enum values supported by stream-type in params rtsp-client, then configure TCP:

-p 'src:stream-type=tcp;source{url=rtsp://<PC_IP>:8554/live}'

---

Relaying as an RTMP Service

Building on the previous step, only the server module is replaced with rtmp-server.

Pipeline Structure

Pass-through pipeline:

rtsp-client -> rtmp-server

Full Command

./bin/ffmedia run \
  -m src=rtsp-client \
  -m relay=rtmp-server \
  -p 'src:source{url=rtsp://<PC_IP>:8554/live}' \
  -p 'relay:endpoint/port=1935' \
  -c src=relay

Newly Added Options

Part	Meaning
-m relay=rtmp-server	Declare the RTMP server module instance relay
-p 'relay:endpoint/port=1935'	Set the service port to 1935 (the default RTMP port)

The pulling side — the src instance and the connections — stays completely unchanged.

Verification

ffplay rtmp://<BOARD_IP>:1935/live

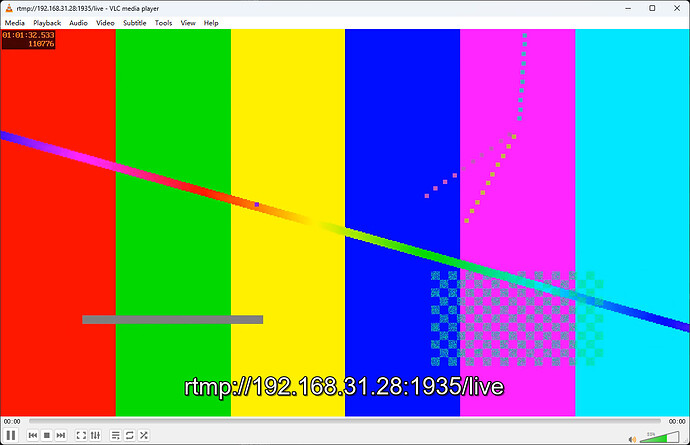

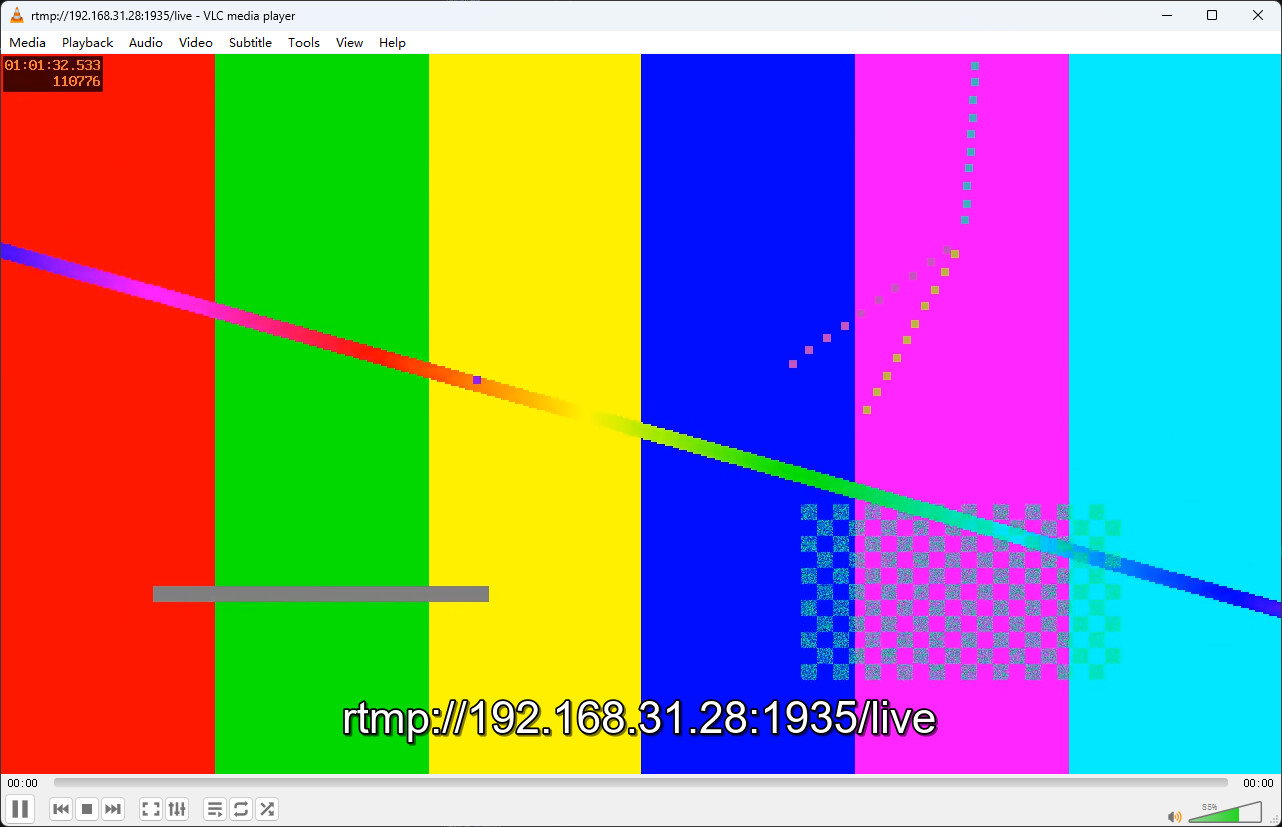

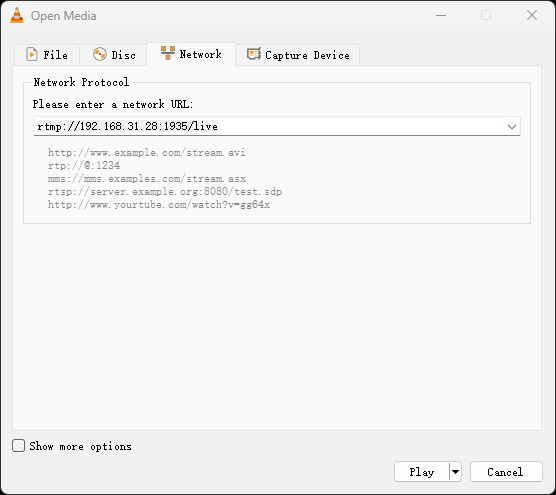

Or use the VLC client to pull the RTMP stream provided by the board:

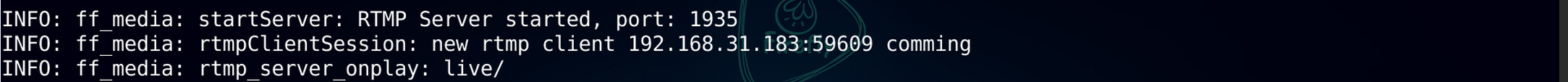

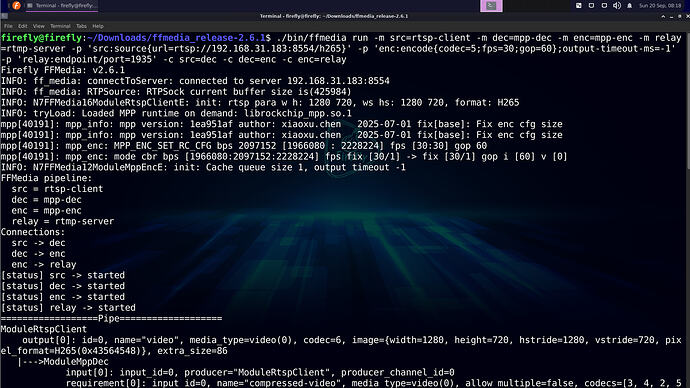

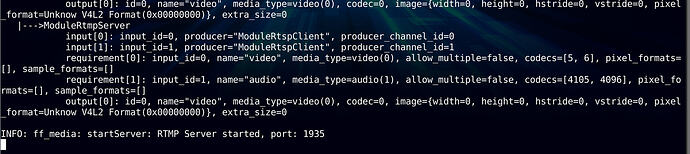

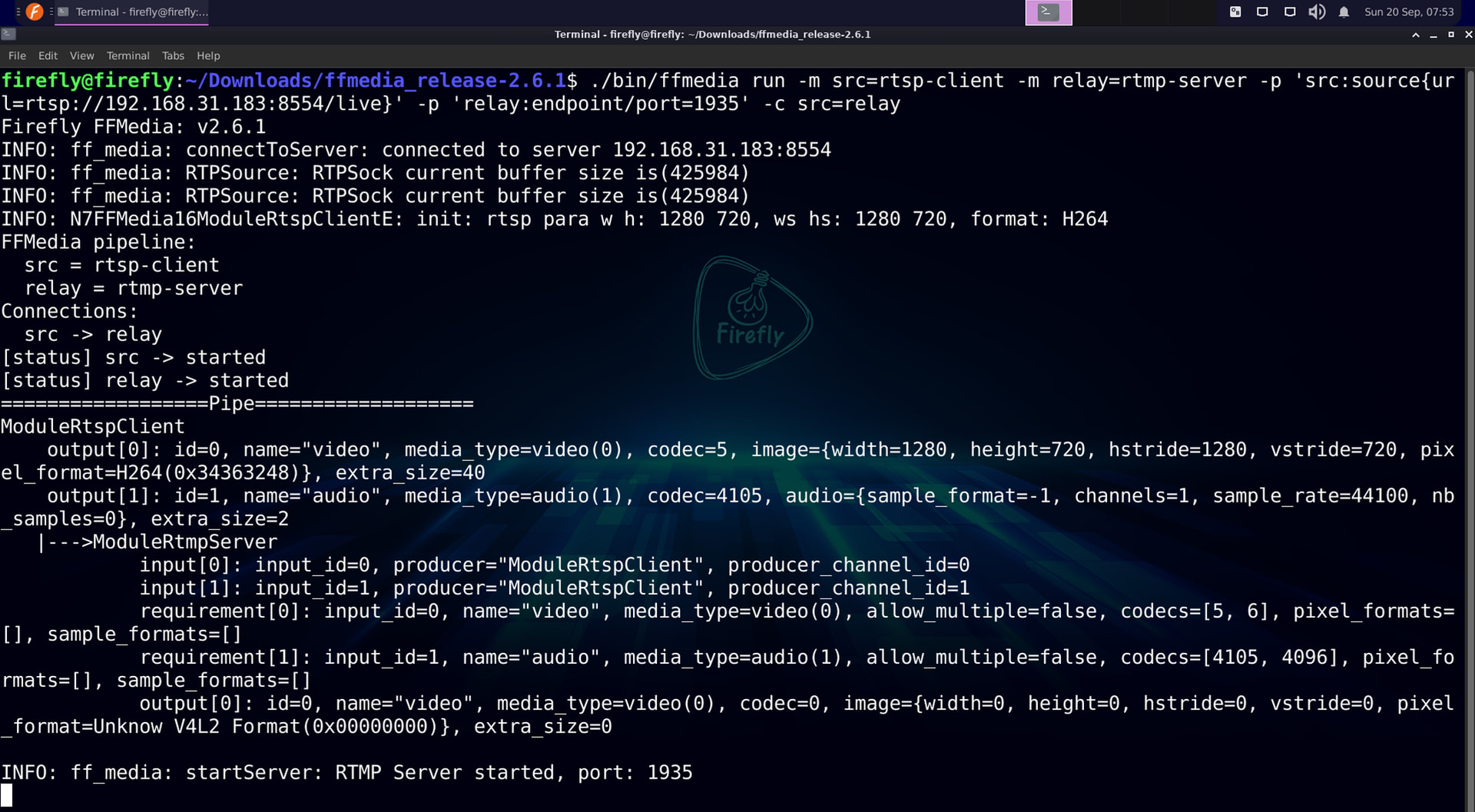

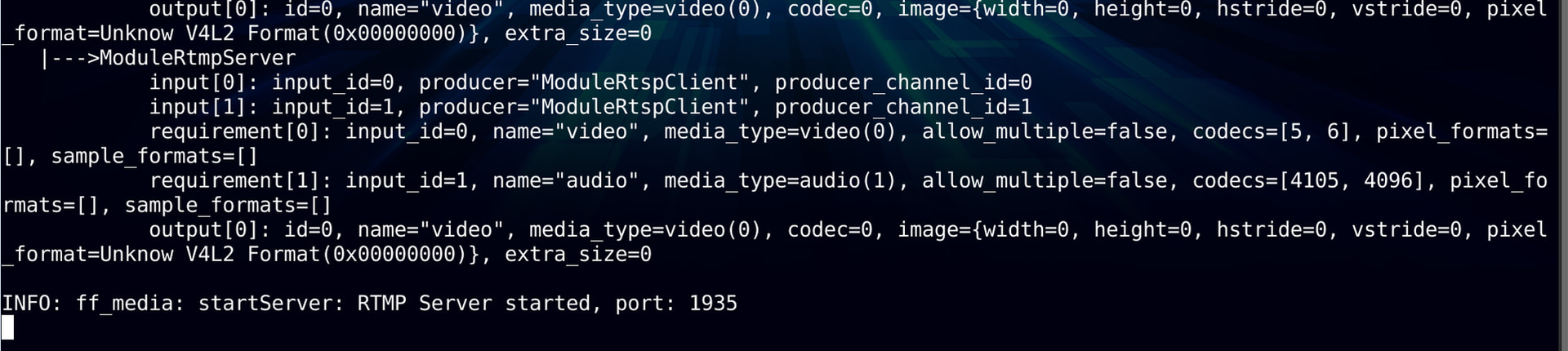

What FFMedia prints:

Note: Pass-through relaying requires the upstream video to be H.264. If the upstream is H.265, or the RTMP client reports an unsupported video codec, use the transcoding pipeline in the next subsection.

---

Transcoding and Relaying When the Upstream Is H.265

When the upstream codec is incompatible with the target protocol, insert decoding and encoding modules into the pipeline. This example converts H.265 to H.264 and then serves RTMP.

Pipeline Structure

Transcoding pipeline:

rtsp-client -> mpp-dec -> mpp-enc -> rtmp-server

Full Command

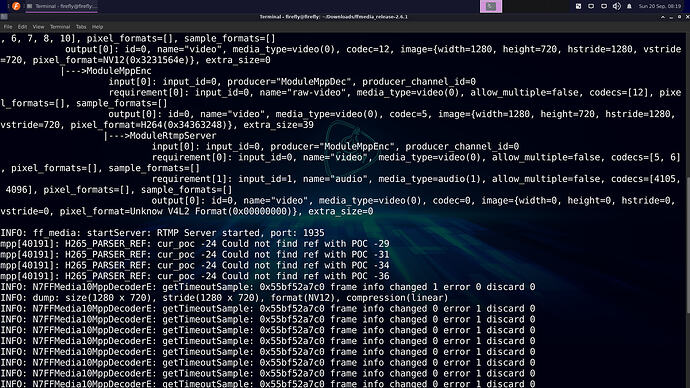

./bin/ffmedia run \
  -m src=rtsp-client \
  -m dec=mpp-dec \
  -m enc=mpp-enc \
  -m relay=rtmp-server \
  -p 'src:source{url=rtsp://<PC_IP>:8554/h265}' \
  -p 'enc:encode{codec=5;fps=30;gop=60};output-timeout-ms=-1' \
  -p 'relay:endpoint/port=1935' \
  -c src=dec \
  -c dec=enc \
  -c enc=relay

Newly Added Options

Part	Meaning
-m dec=mpp-dec	Declare the hardware decoding module instance dec
-m enc=mpp-enc	Declare the hardware encoding module instance enc
-p 'enc:encode{codec=5;fps=30;gop=60}'	Set the encoding format to 5 (H.264), frame rate 30, GOP 60
-p '...;output-timeout-ms=-1'	Disable the output timeout so the transcoding chain does not exit early when there is no output
-c src=dec	Feed the pulled stream into the decoding module
-c dec=enc	Feed the decoded frames into the encoding module (frames now, no longer a bitstream)
-c enc=relay	Feed the encoded H.264 bitstream into the RTMP server

Video Codec Enumeration Reference

Values of the encode/codec parameter correspond to different video encoding formats; common values are as follows:

Enum Name	Integer Value	Description
MEDIA_CODEC_UNKNOWN	0	Unknown codec format
MEDIA_CODEC_VIDEO_VCM	1	VCM video encoding
MEDIA_CODEC_VIDEO_MPEG4	2	MPEG-4 video encoding
MEDIA_CODEC_VIDEO_MPEG1	3	MPEG-1 video encoding
MEDIA_CODEC_VIDEO_MPEG2	4	MPEG-2 video encoding
MEDIA_CODEC_VIDEO_H264	5	H.264 (AVC) video encoding ← used in this section’s example
MEDIA_CODEC_VIDEO_H265	6	H.265 (HEVC) video encoding
MEDIA_CODEC_VIDEO_VP8	7	VP8 video encoding
MEDIA_CODEC_VIDEO_VP9	8	VP9 video encoding
MEDIA_CODEC_VIDEO_AV1	9	AV1 video encoding
MEDIA_CODEC_VIDEO_MJPEG	10	Motion JPEG video encoding
MEDIA_CODEC_VIDEO_H266	11	H.266 (VVC) video encoding
MEDIA_CODEC_VIDEO_RAW	12	Raw video data

For details, refer to the SDK’s include/ffmedia/base/ff_type.hpp.

Note: This pipeline handles video only. If you also need to keep the upstream audio, plan the audio channel’s encoding and connections separately — do not assume audio will pass through the video transcoding chain automatically.

---

Pulling from an RTMP Upstream

rtmp-client supports both pulling and pushing; the direction is determined by the publish parameter:

Value	Direction	Position in the Pipeline
publish=true	Pull	As the root source module (Producer)
publish=false	Push	As a downstream consumer (Consumer)

Full Command

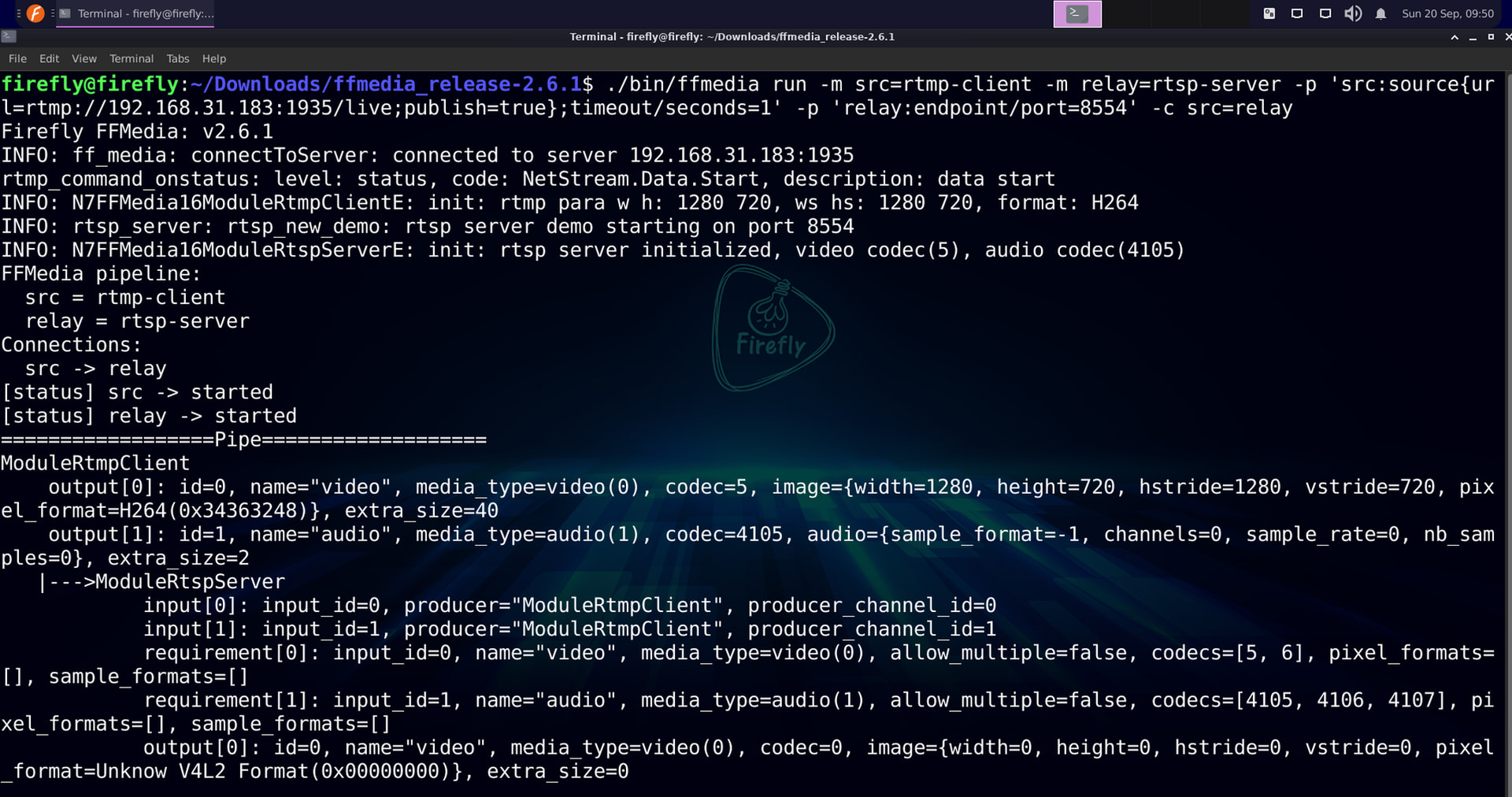

Pull the stream and serve it as RTSP:

./bin/ffmedia run \
  -m src=rtmp-client \
  -m relay=rtsp-server \

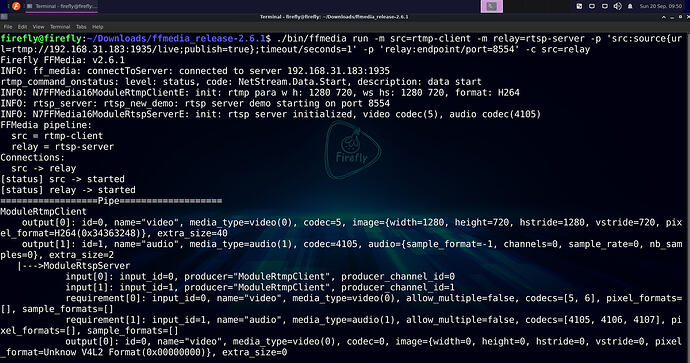

  -p 'src:source{url=rtmp://<PC_IP>:1935/live;publish=true};timeout/seconds=1' \
  -p 'relay:endpoint/port=8554' \
  -c src=relay

Newly Added Options

Part	Meaning
-m src=rtmp-client	Declare the RTMP client module instance src
-p 'src:source{url=rtmp://...;publish=true};timeout/seconds=1'	Specify the upstream RTMP address, and explicitly declare the pull direction and the timeout

Simply replacing relay with rtmp-server (port 1935) gives you the “RTMP pull → RTMP serve” combination, with the connections unchanged.

Note: In pull mode you must set publish=true explicitly. Without it, the module operates in push mode and behaves as if it cannot pull the stream.

---

Serving RTSP and RTMP from the Same Upstream

Pipeline Structure

Branch pipeline (the same pulling source can branch to two servers):

                    +-> rtsp-server :8554/live
rtsp-client --------+
                    +-> rtmp-server :1935/live

Full Command

./bin/ffmedia run \
  -m src=rtsp-client \
  -m rtsp=rtsp-server \
  -m rtmp=rtmp-server \
  -p 'src:source{url=rtsp://<PC_IP>:8554/live}' \
  -p 'rtsp:endpoint/port=8554' \
  -p 'rtmp:endpoint/port=1935' \
  -c src=rtsp \
  -c src=rtmp

Newly Added Options

Part	Meaning
-m rtsp=rtsp-server	Declare the RTSP server instance rtsp
-m rtmp=rtmp-server	Declare the RTMP server instance rtmp
-c src=rtsp	The first branch connection (the first Consumer of the same Producer)
-c src=rtmp	The second branch connection (the second Consumer of the same Producer)

The src instance name never changes; it connects to both servers simultaneously via two -c src=... options — no additional dispatch logic is needed; the framework handles it automatically. The two branches do not affect each other.

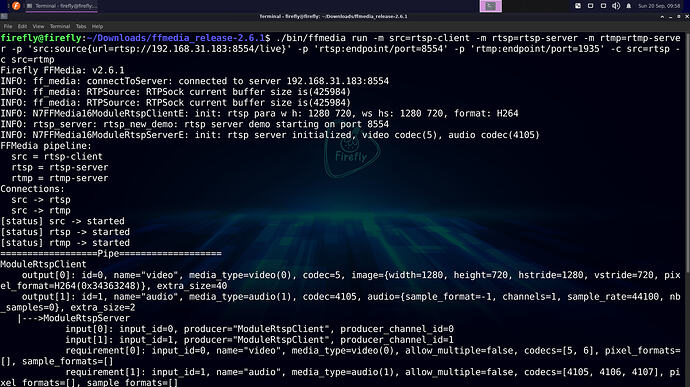

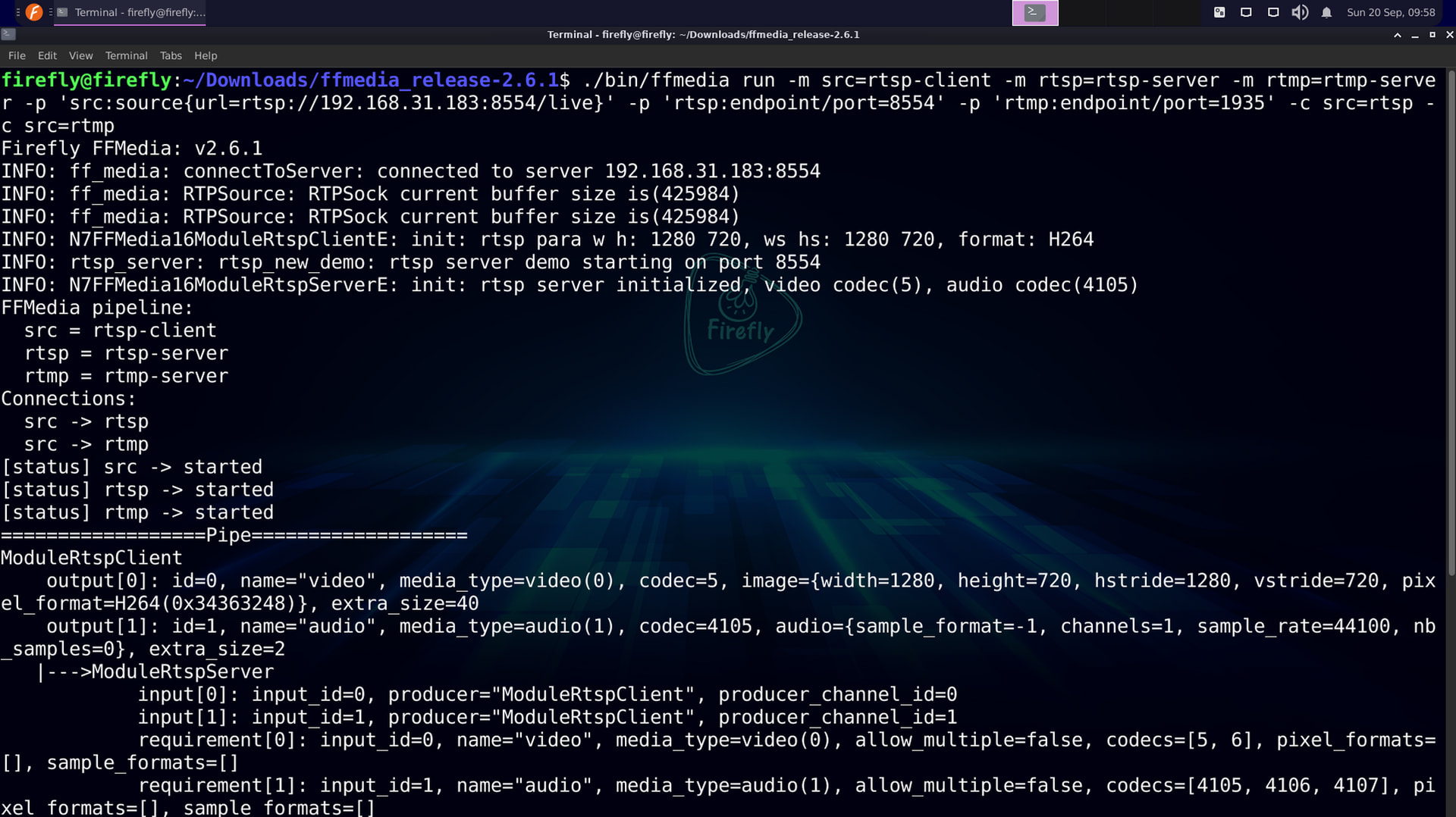

Verification

ffplay rtsp://<BOARD_IP>:8554/live
ffplay rtmp://<BOARD_IP>:1935/live

This is still bitstream pass-through. If the upstream codec plays fine for RTSP clients but does not suit RTMP, only change the RTMP branch to mpp-dec → mpp-enc(H.264) → rtmp-server, keeping the RTSP branch as pass-through.

---

Pulling Other FFmpeg-Supported Inputs

rtsp-client and rtmp-client are dedicated network modules; for input formats supported by FFmpeg such as HLS, HTTP, SRT, and WHEP, use ffmpeg-demux instead:

Module	Applicable Protocols
rtsp-client / rtmp-client	RTSP, RTMP; dedicated implementations
ffmpeg-demux	HLS, HTTP, SRT, WHEP, and other inputs supported by FFmpeg

Check the parameters supported by ffmpeg-demux:

./bin/ffmedia params ffmpeg-demux

The basic parameter format is:

-p 'src:input-format=<FORMAT>;source{uri=<INPUT_URI>;loop=0}'

Part	Meaning
input-format	FFmpeg’s short input format name; it can be omitted if unsure, letting FFmpeg auto-detect
source/uri	The input address; use uri, not the dedicated clients’ url
source/loop=0	No looping for network streams; keep running until the stream breaks or a stop signal arrives

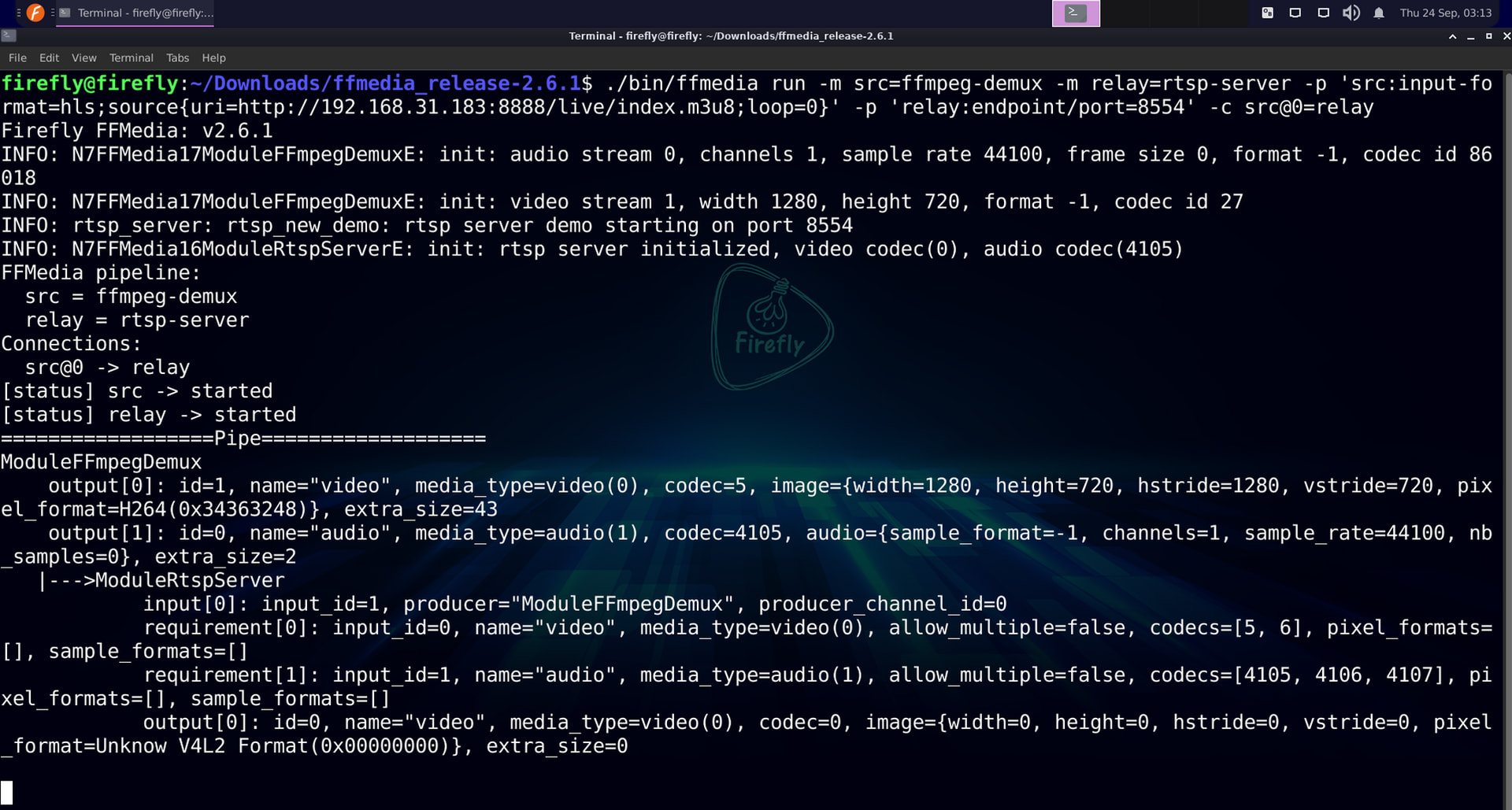

Taking HLS input as an example (replace the address with a real, reachable .m3u8):

./bin/ffmedia run \
  -m src=ffmpeg-demux \
  -m relay=rtsp-server \

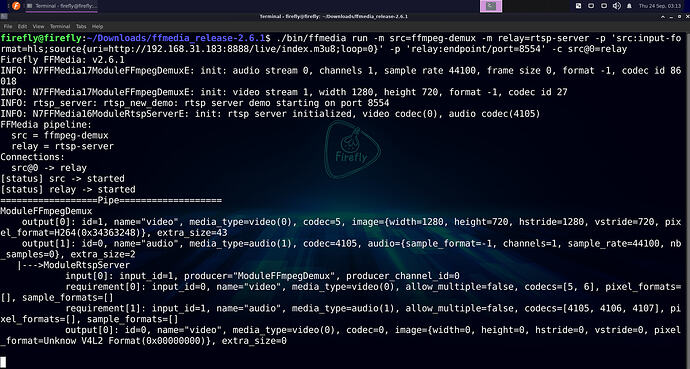

  -p 'src:input-format=hls;source{uri=http://<PC_IP>:8888/live/index.m3u8;loop=0}' \
  -p 'relay:endpoint/port=8554' \
  -c src@0=relay

Here src@0 relays only the video channel, avoiding a mismatch between upstream audio codecs such as Opus and what the RTSP server can accept as input.

The TCP option for RTSP is passed through ffmpeg/options:

-p 'src:input-format=rtsp;source{uri=rtsp://<PC_IP>:8554/live;loop=0};ffmpeg{options=rtsp_transport=tcp}'

---

IPC Network Cameras

An IPC network camera is usually a small streaming device that integrates “capture + encoding + RTSP serving” in one box; it directly replaces the entire “PC + MediaMTX + ffmpeg push” segment.

The main working principle:

• Capture side: sensor imaging → ISP processing (3A, noise reduction) → VENC hardware-encodes to H.264/H.265
• Server side: the firmware runs a built-in RTSP server listening on port 554 or similar
• Externally it is a standard RTSP source — FFMedia’s rtsp-client pulls from it exactly the same way as from MediaMTX

The topology:

IPC camera (an RTSP source as seen from outside)
  image sensor + ISP --> hardware encoding H.264 / H.265 --> built-in RTSP Server :554
        |
        |  rtsp://admin:<Password>@<IPC_IP>:554/Streaming/Channels/101
        v
RK3588 board
  rtsp-client (pulls the stream, no decoding) --> rtsp-server :8554 / rtmp-server :1935
        |
        |  rtsp://<BOARD_IP>:8554/live or rtmp://<BOARD_IP>:1935/live
        v
PC client
  ffplay / VLC / ...

For example, pull from a network camera and relay to rtmp-server, with the encoding format set to 5 (H.264), frame rate 30, GOP 60:

./bin/ffmedia run \
  -m src=rtsp-client \
  -m dec=mpp-dec \
  -m enc=mpp-enc \
  -m relay=rtmp-server \
  -p 'src:source{url=rtsp://admin:<Password>@<IPC_IP>:554/Streaming/Channels/101}' \
  -p 'enc:encode{codec=5;fps=30;gop=60};output-timeout-ms=-1' \
  -p 'relay:endpoint/port=1935' \
  -c src=dec \
  -c dec=enc \
  -c enc=relay

Here rtsp://admin:<Password>@<IPC_IP>:554/Streaming/Channels/101} must be replaced with the actual RTSP URL of your network camera.

Summary

This section applied the three CLI essentials to network pipelines, adding only one module or one connection per step:

1. Step 1 (upstream verification): use MediaMTX + ffmpeg synthetic streams as the upstream source, verify availability on the PC first with ffprobe / ffplay, keeping the problem boundary outside the board;
2. Step 2 (pull + RTSP serve): pull with rtsp-client and distribute with rtsp-server, completing the simplest pass-through pipeline;
3. Step 3 (swap in the RTMP server): only replace relay’s module and port (1935); the pulling side is untouched;
4. Step 4 (insert transcoding): when the upstream is H.265, add mpp-dec and mpp-enc between src and relay (codec=5 converts to H.264);
5. Step 5 (swap the puller): replace rtsp-client with rtmp-client + publish=true, declaring the pull direction explicitly;
6. Step 6 (branch pipeline): one rtsp-client connects to both rtsp-server and rtmp-server via two -c src=... options;
7. Step 7 (swap to the general-purpose pulling module): for inputs supported by FFmpeg such as HLS and SRT, replace the dedicated clients with ffmpeg-demux;
8. Step 8 (swap to a real upstream source): replace the upstream address with the IPC camera’s RTSP URL.
