固件类型：官方提供的固件
固件文件名称：ROC-RK3588S-PC_Ubuntu22.04-Xfce-r31167_v1.3.0c_260
固件下载地址：百度网盘
Log日志：修改的设备树和pwm脚本.rar
我想要把UART7_TX（GPIO1_B5）复用成PWM引脚，实现LED灯做呼吸灯的功能。修改完设备树重启后，发现新的PWM设备确实是注册上了，用逻辑分析仪查看引脚，引脚一直没有输出PWM波。
我对设备树做了如下修改：
1.禁用 UART7，释放GPIO1_B4(gpio1-12) 和 GPIO1_B5(gpio1-13)，避免与 PWM3 引脚冲突
2.启动PWM3节点

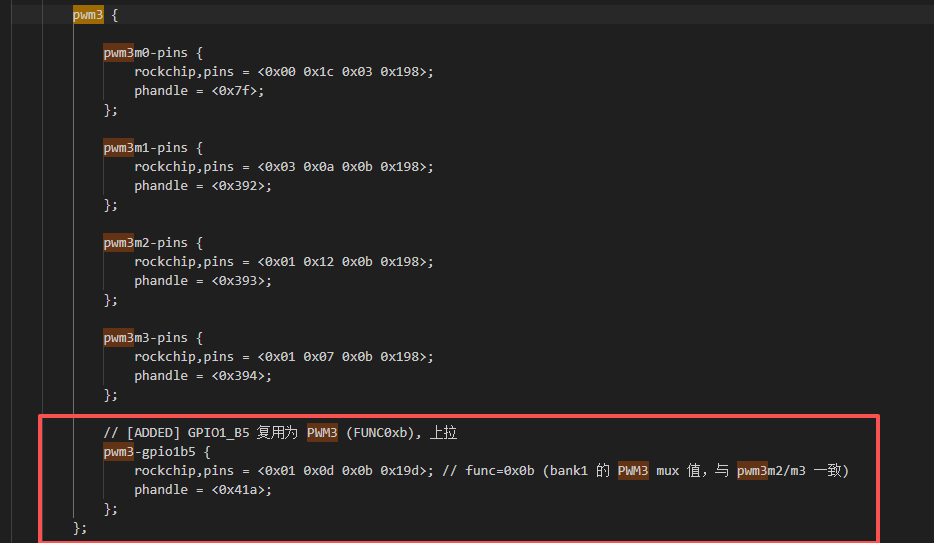

3.在 pinctrl/pwm3 节点内部，添加配置
4.在 symbols 节点之前添加PWM LED节点

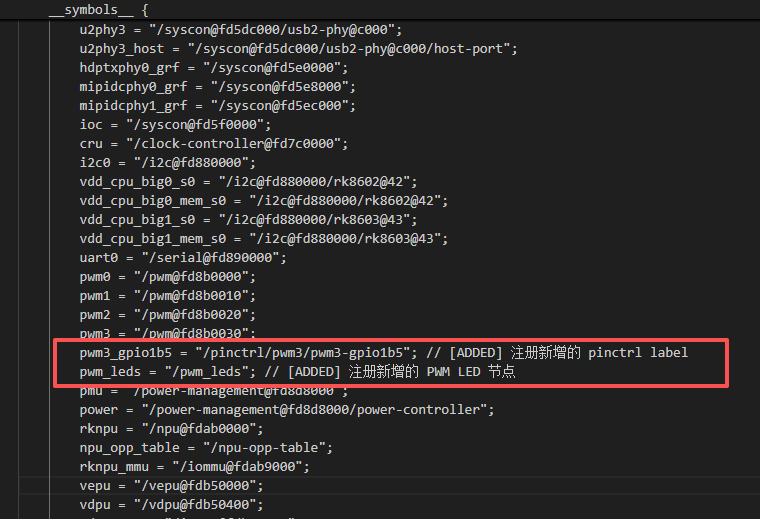

5.注册新节点到 `symbols
输入sudo cat /sys/kernel/debug/pinctrl/pinctrl-maps | grep"gpio1-13"
输入sudo cat /sys/kernel/debug/pinctrl/pinctrl-maps | grep"pwm3"
请问我哪个步骤弄错了，还是说要是特定的GPIO引脚才能生成PWM?
以及除了这个PWM3，还有没有其他PWM通道可以用的？
